| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | SAC-4P-10 0-PUR/M12FR |
| Application | For sensor/actuator |
| Approvals | UL Listed, cUL Listed, EAC, cULus Listed |

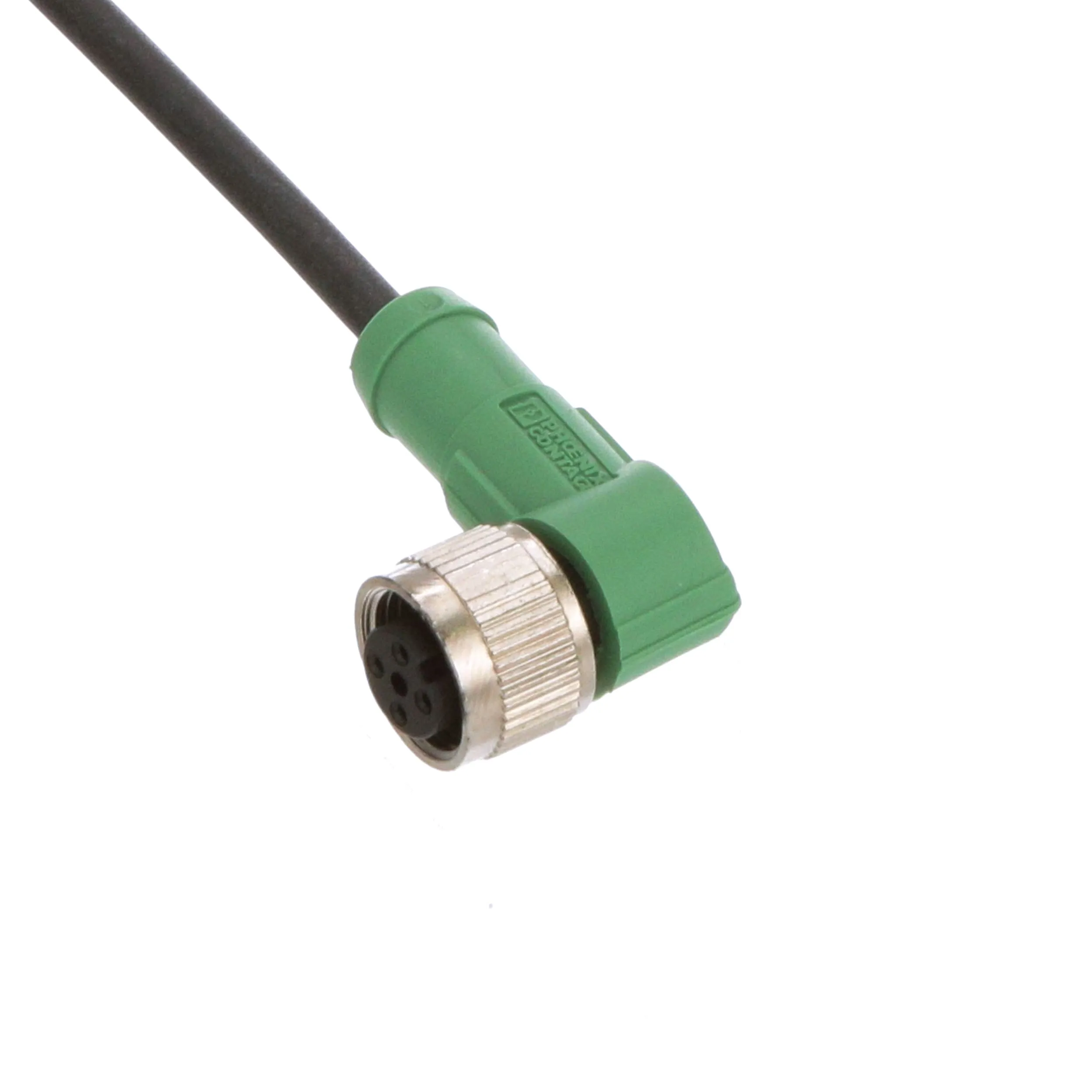

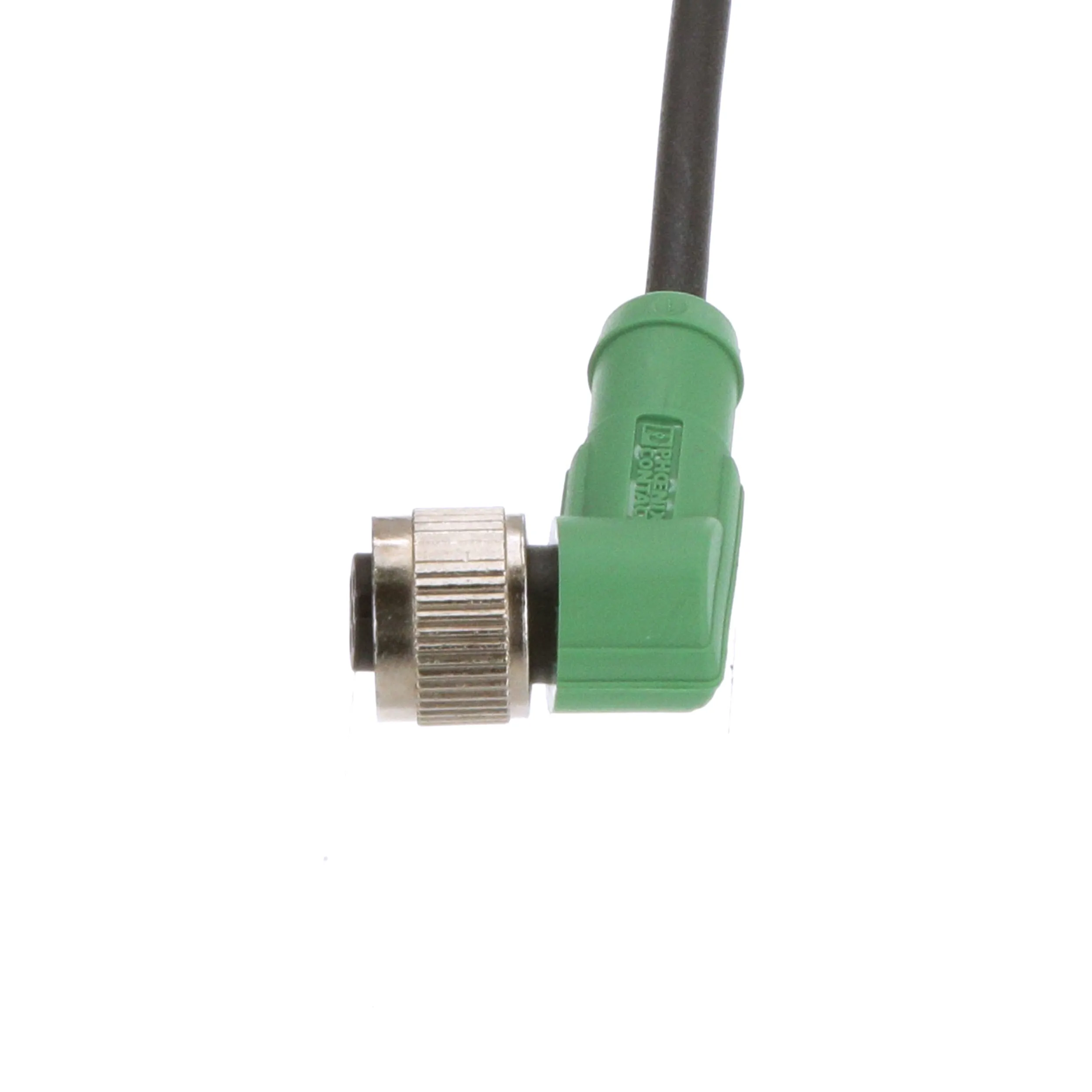

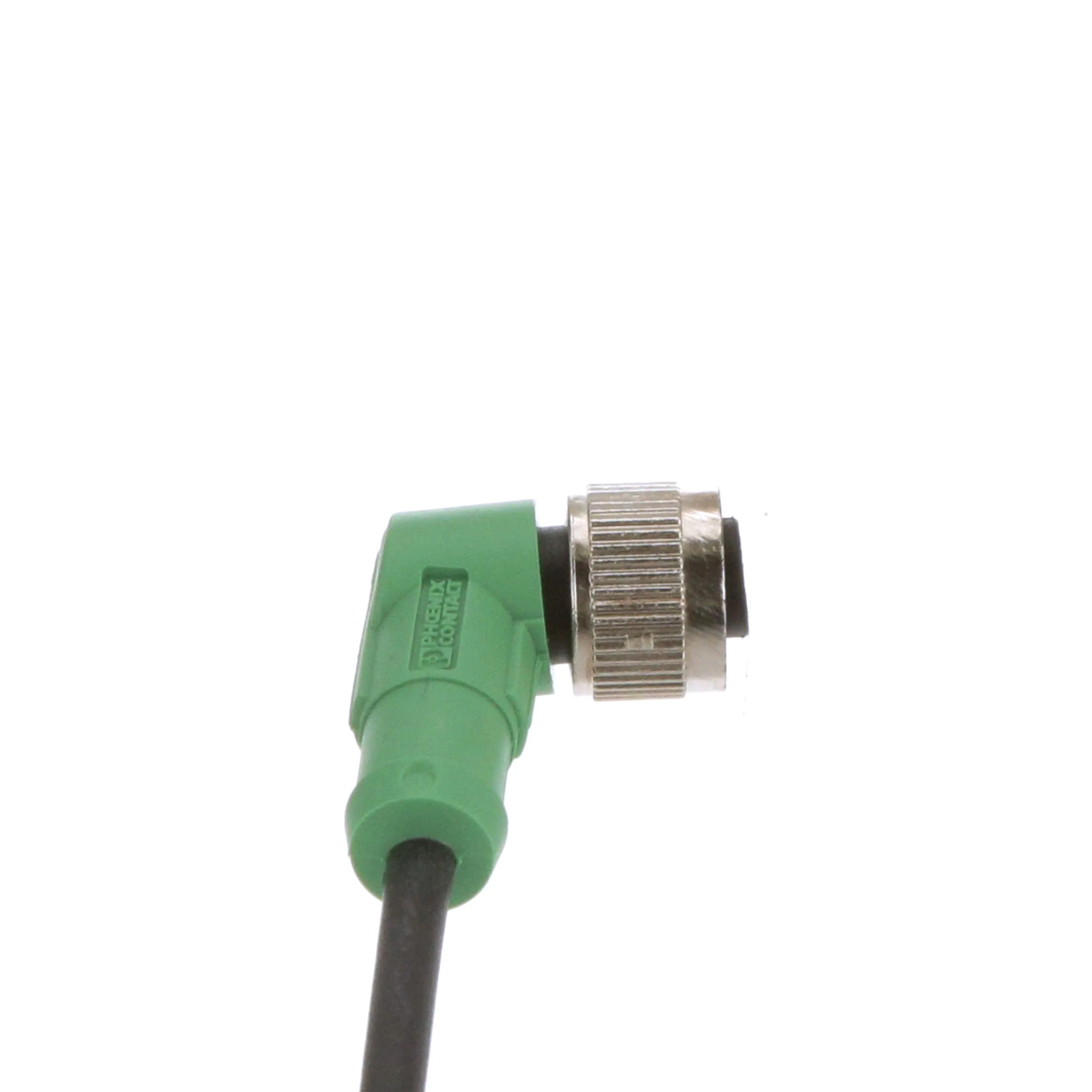

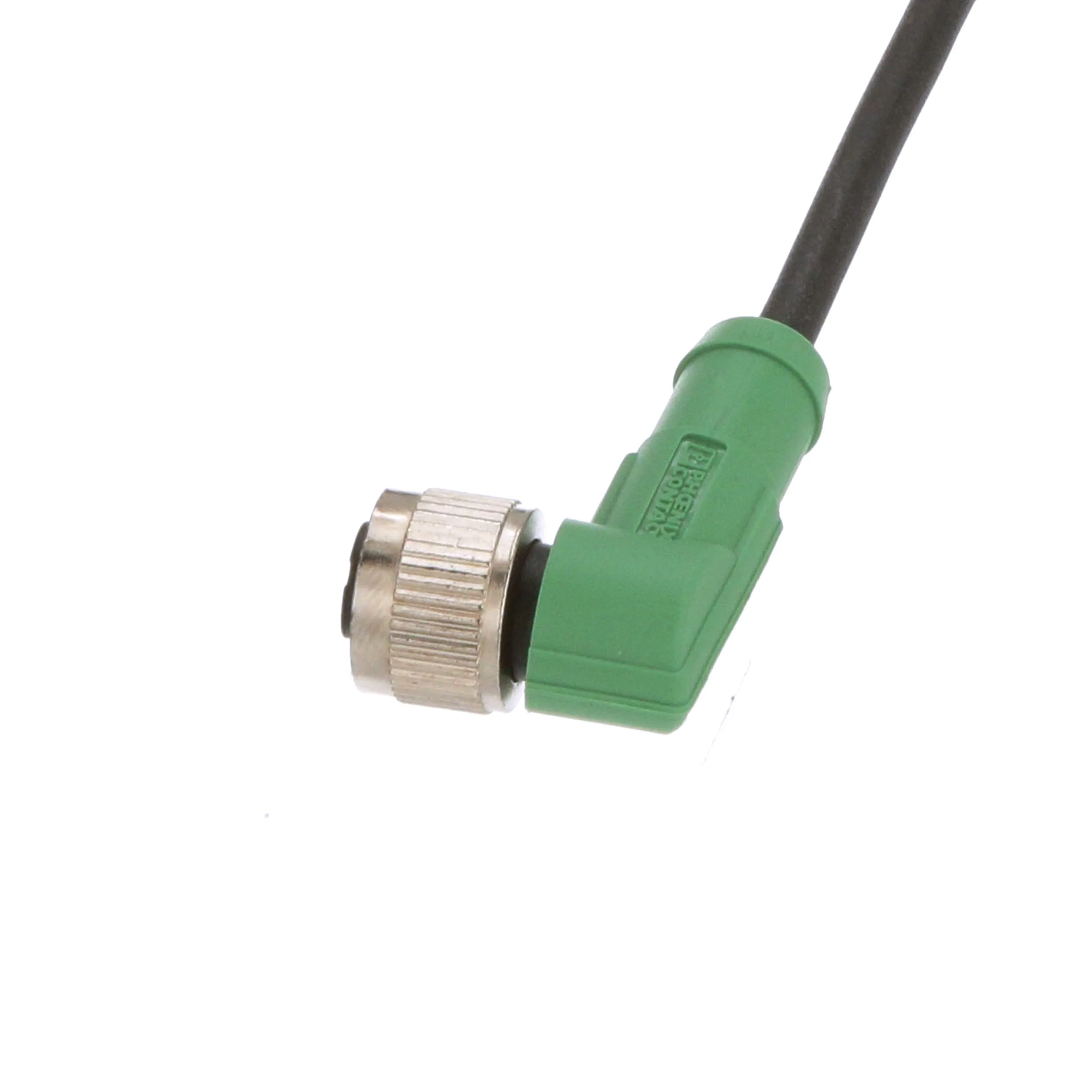

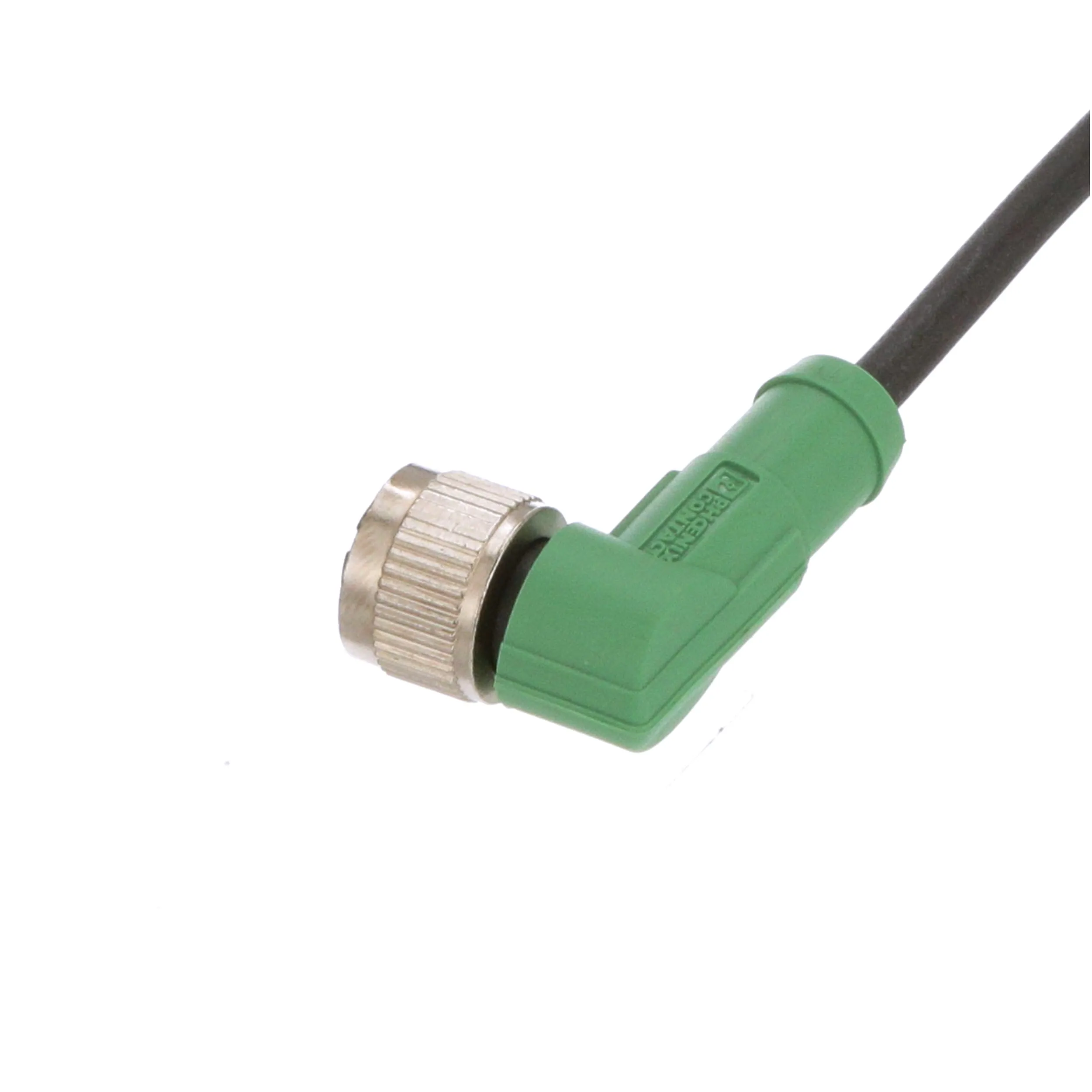

| Cable end 1, Connector Angle | Right Angle |
| Cable end 1, Connector Type | M12 Female |
| Cable end 2, Connector Angle | None |
| Cable end 2, Connector Type | Pigtail |
| Cable Length | 10 m(32.8 ft.) |
| Cable Type | Single Ended |
| Conductor Material | Bare Copper (BC) |
| Conductor Size | 22 AWG |
| Connector Type | M12 |
| Family Name | SPEEDCON Series |
| Insulation Material | Polyurethane (PUR) |
| Jacket Color | Black-Gray |
| Jacket Material | PUR (Polyurethane) |
| Length | 32.81' (10m) |
| Number of Conductors | 4 |
| Primary Type | Cable |
| Product Header | Sensor/Actuator Cable |
| Series | |
| Special Features | Halogen-Free |
| Standards | UL, cULus |
| Temperature, Rating | -25 to 90 °C (Plug/Socket), -40 to 80 °C (Fixed), -5 to 80 °C (Flexible) |
| Type | Right Angle |
| UPC Code | 4017918185480 |
Overview
Phoenix Contact SAC and SACC Series – SPEEDCON Family of Sensor/Actuator Cabling and Industrial Connectors:
SPEEDCON is the next generation of M12 connectors, which have been an industrial standard for many years. With a simple “plug and 1⁄2 turn" SPEEDCON provides a time savings of 90% over the traditional M12 screw thread. The SPEEDCON coupling features a tactile stop to ensure proper alignment and guarantees a perfect connection in the field.
The SPEEDCON rapid interlock system is based on the principle of "Plug-and-Turn". It is 100-percent compatible with all M12 connectors. This means the cordsets are backwards compatible and can mate to fully threaded standard sensors. Reduce your assembly time by 90-percent. With just a half-turn, the SPEEDCON M12 rapid interlock system from Phoenix Contact creates a perfect connection. SPEEDCON from Phoenix Contact fulfills all electrical and mechanical properties of the classic M12 connector, as well as all common standards and requirements.
Features:
