| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | SACC-M12FR-4CON-PG7-M |
| Application | Sensor |
| Approvals | UL Recognized, cUL Recognized, EAC, EAC, UL Recognized, cUL Recognized, cULus Recognized |

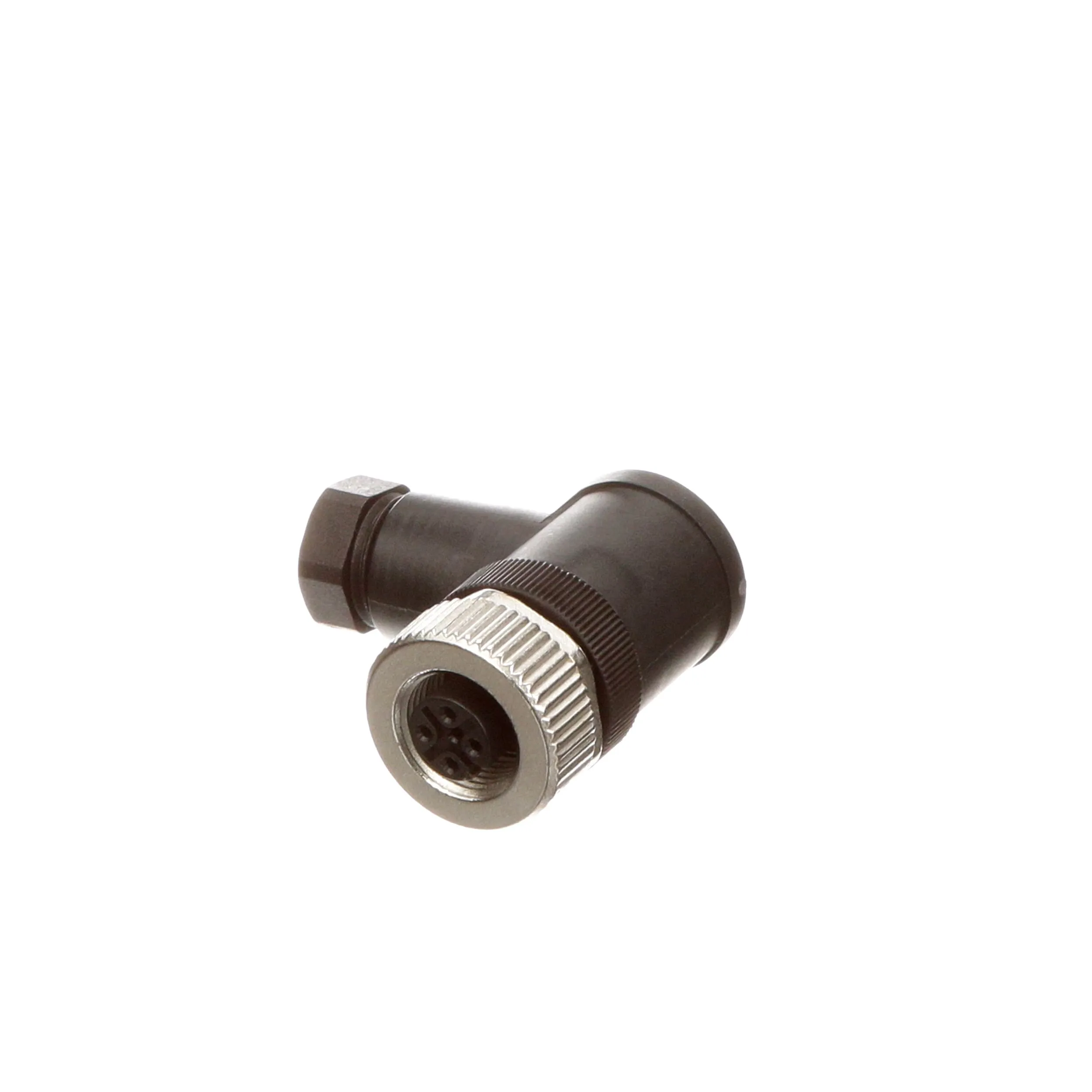

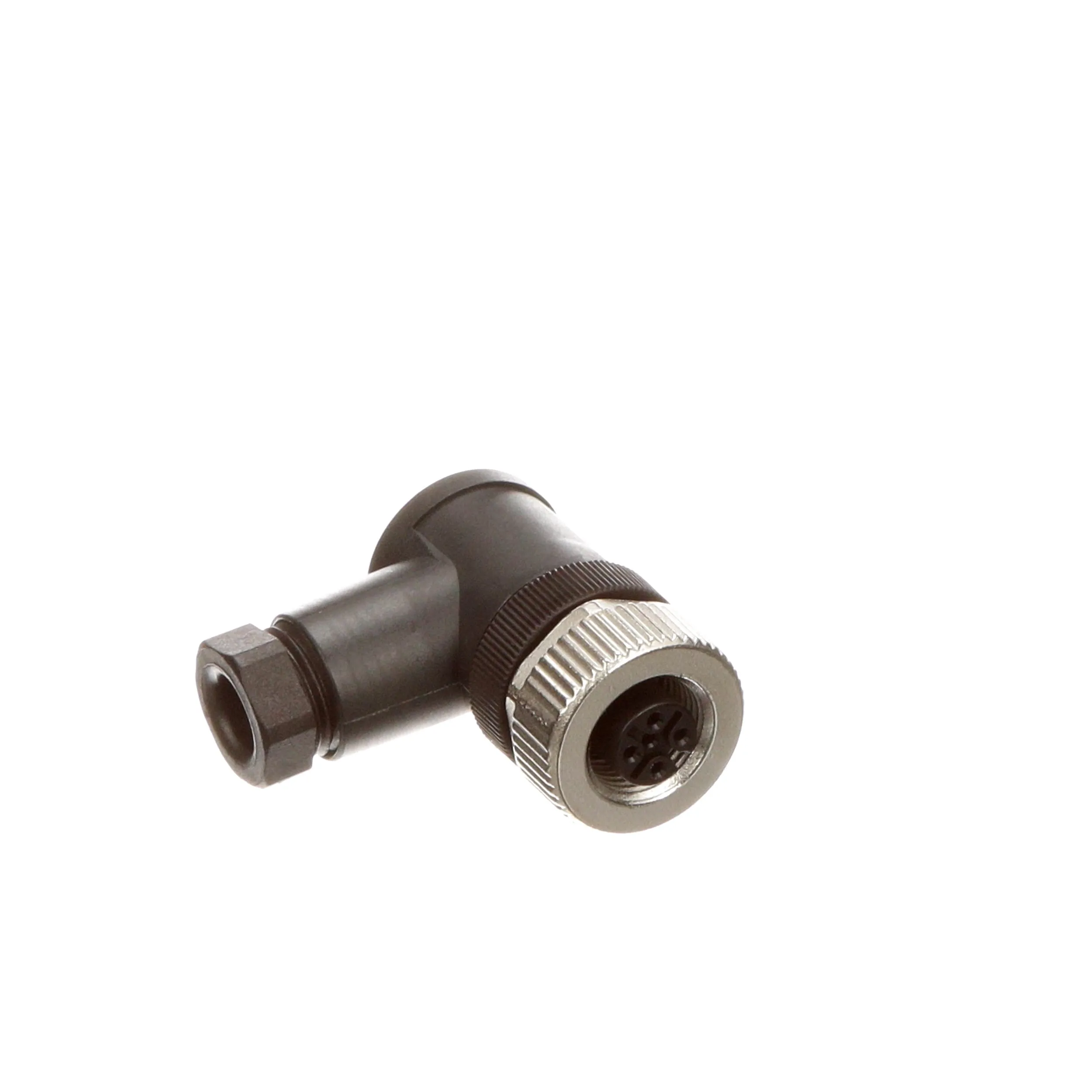

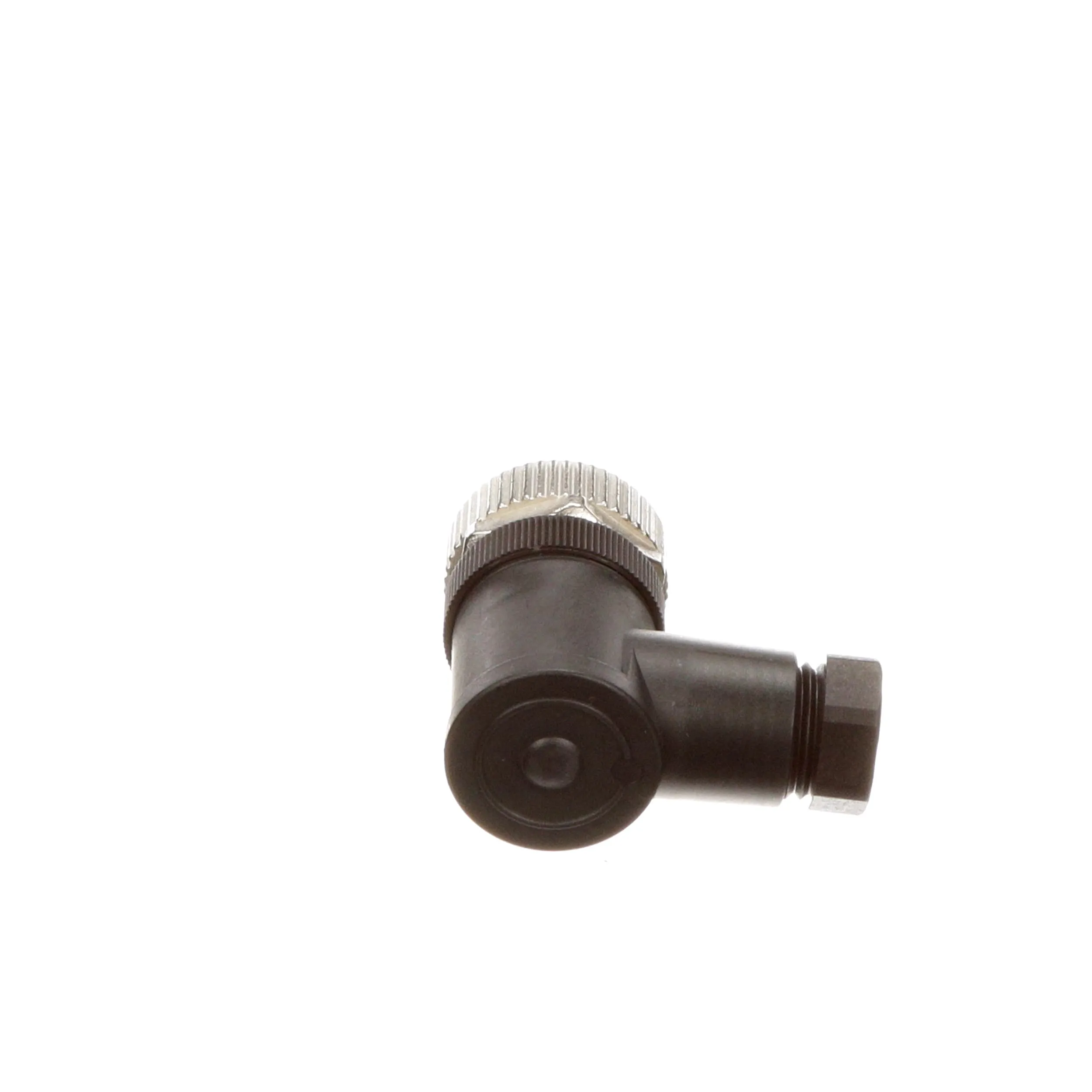

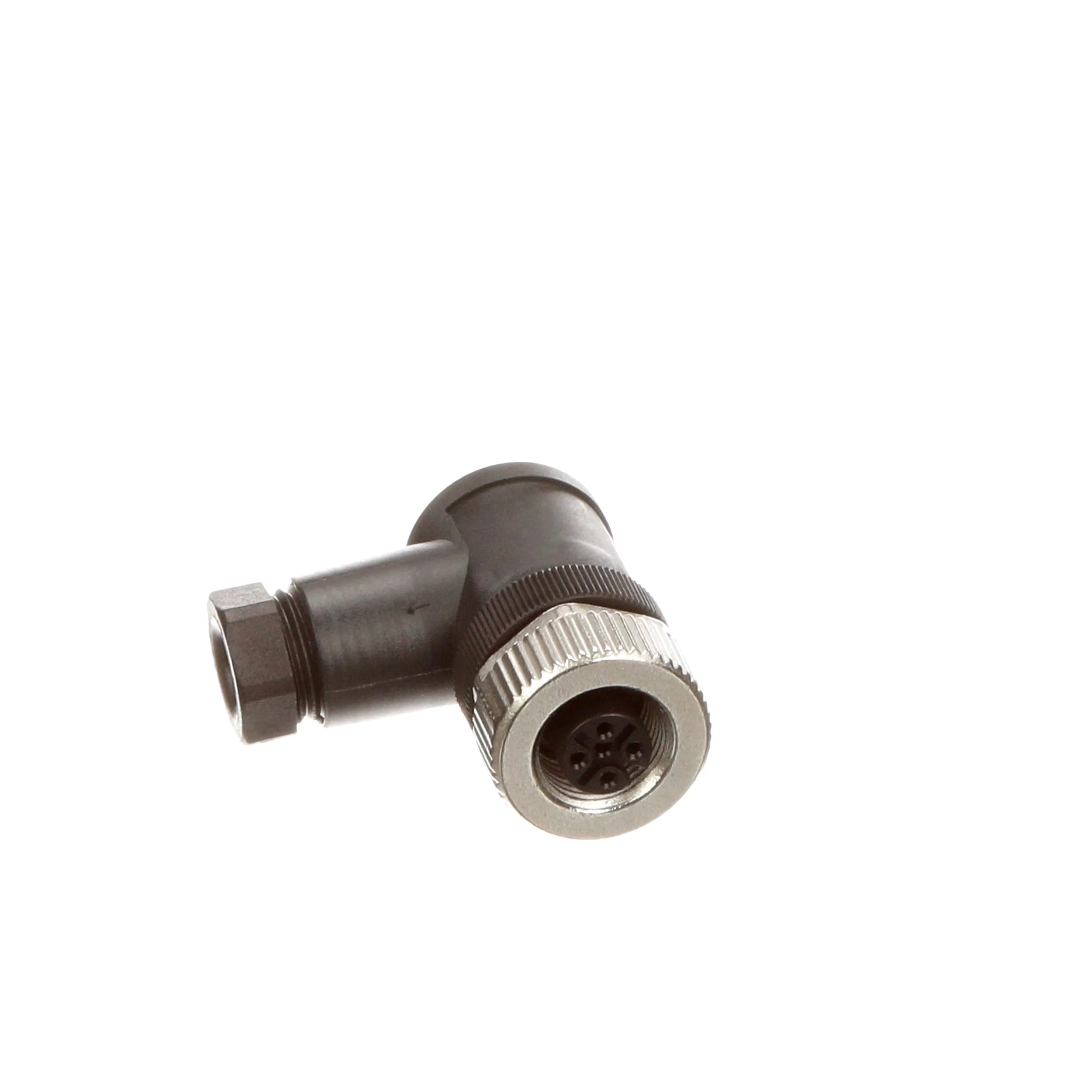

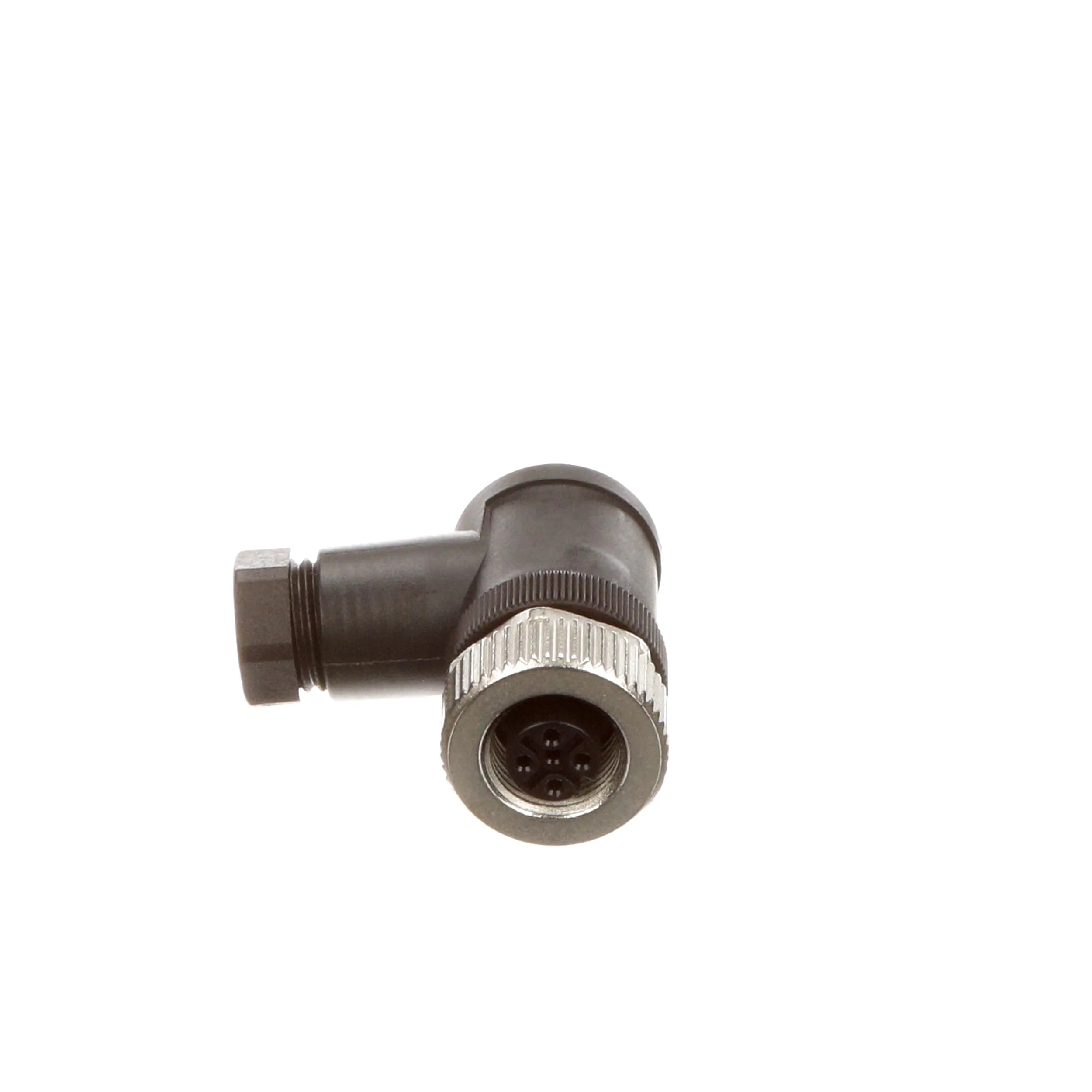

| Cable end 1, Connector Angle | Right Angle |
| Cable end 1, Connector Type | M12 Socket |
| Coding | A-Code |
| Contact Material | CuZn |
| Current Rating | 4 A |
| Family Name | SPEEDCON Series |
| Gender | Female |
| Jacket Material | PVC |
| Mating Type | Full Thread |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Right Angle |
| Primary Type | M Series Automation |
| Series | |
| Shell Size | M12 |
| Shielding | No |
| Termination | Screw |
| Torque | 0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) |
| Type | Socket |
| UPC Code | 4017918157401 |
| Voltage Rating | 250 V |
| Wire Size | 24-18 AWG |
Overview
Phoenix Contact SAC and SACC Series – SPEEDCON Family of Sensor/Actuator Cabling and Industrial Connectors:
SPEEDCON is the next generation of M12 connectors, which have been an industrial standard for many years. With a simple “plug and 1⁄2 turn" SPEEDCON provides a time savings of 90% over the traditional M12 screw thread. The SPEEDCON coupling features a tactile stop to ensure proper alignment and guarantees a perfect connection in the field.
The SPEEDCON rapid interlock system is based on the principle of "Plug-and-Turn". It is 100-percent compatible with all M12 connectors. This means the cordsets are backwards compatible and can mate to fully threaded standard sensors. Reduce your assembly time by 90-percent. With just a half-turn, the SPEEDCON M12 rapid interlock system from Phoenix Contact creates a perfect connection. SPEEDCON from Phoenix Contact fulfills all electrical and mechanical properties of the classic M12 connector, as well as all common standards and requirements.
Features:
