| Product Attribute | Attribute Value |
|---|---|

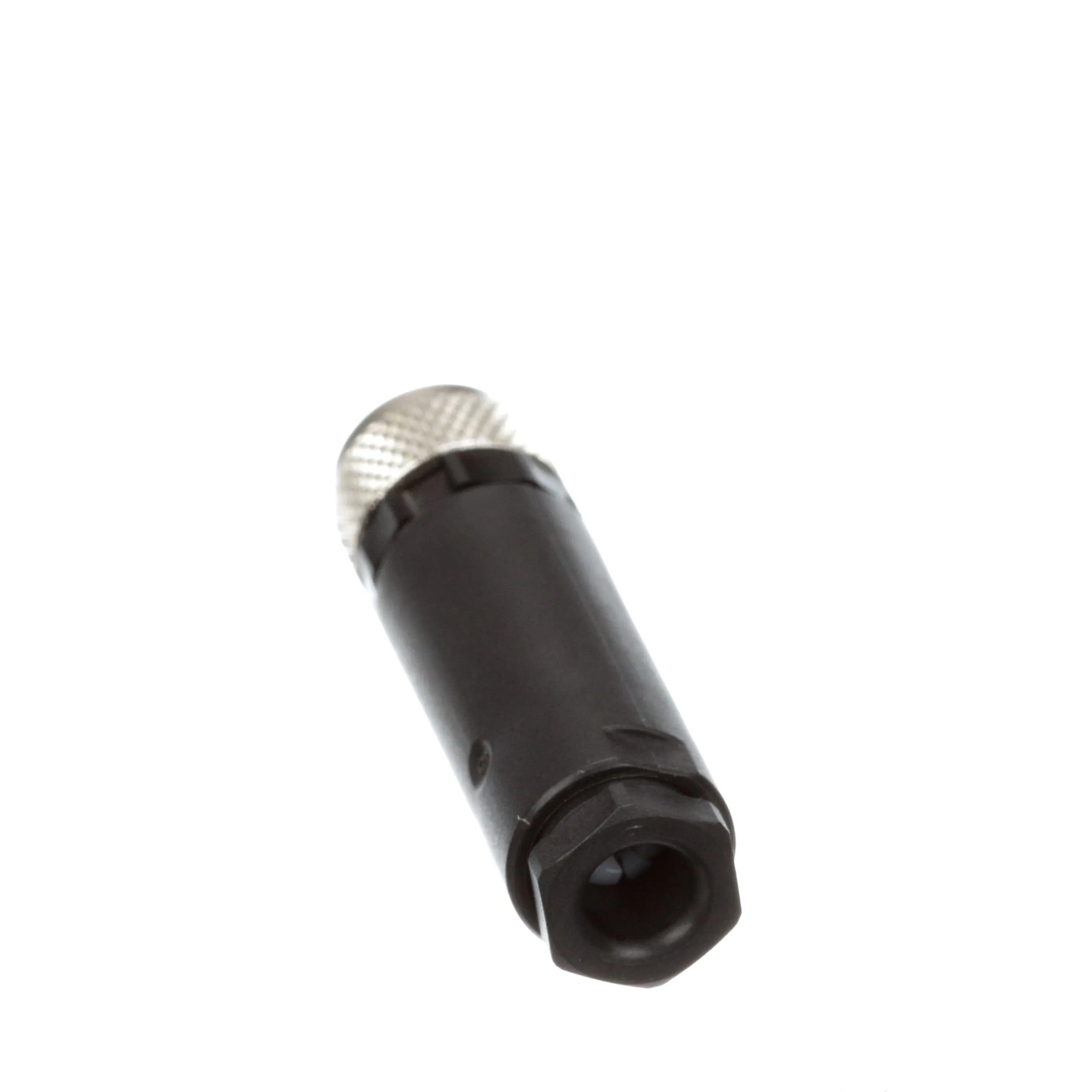

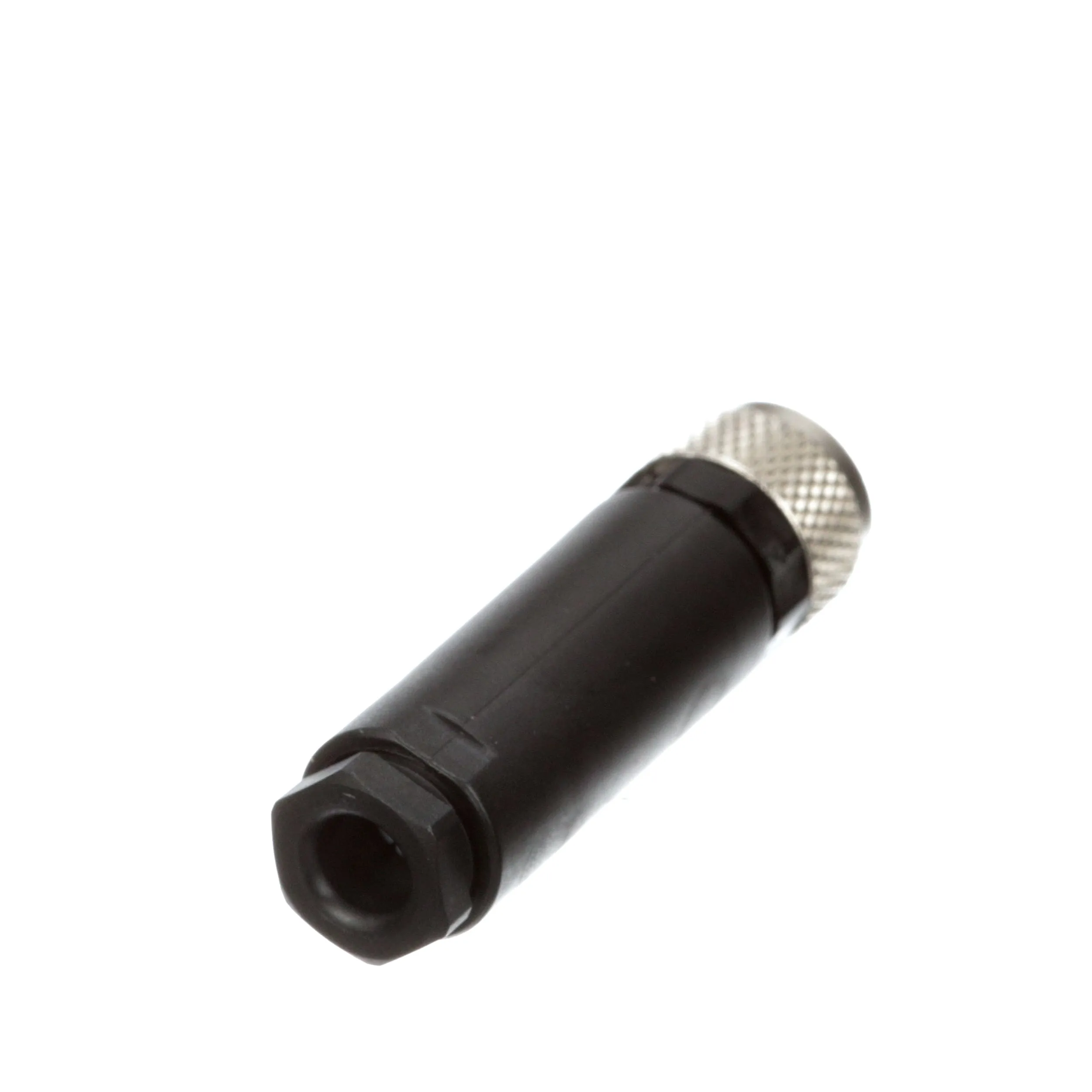

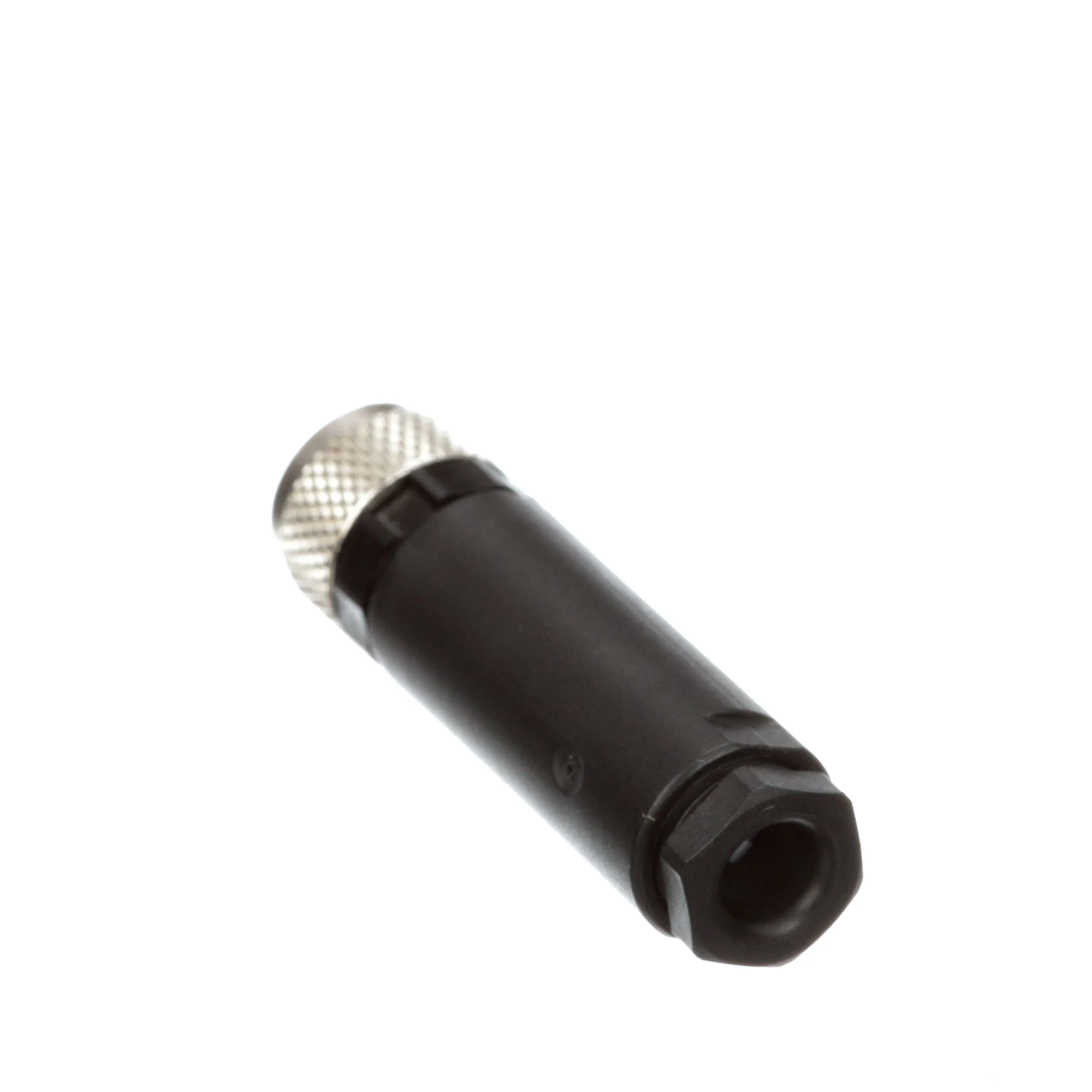

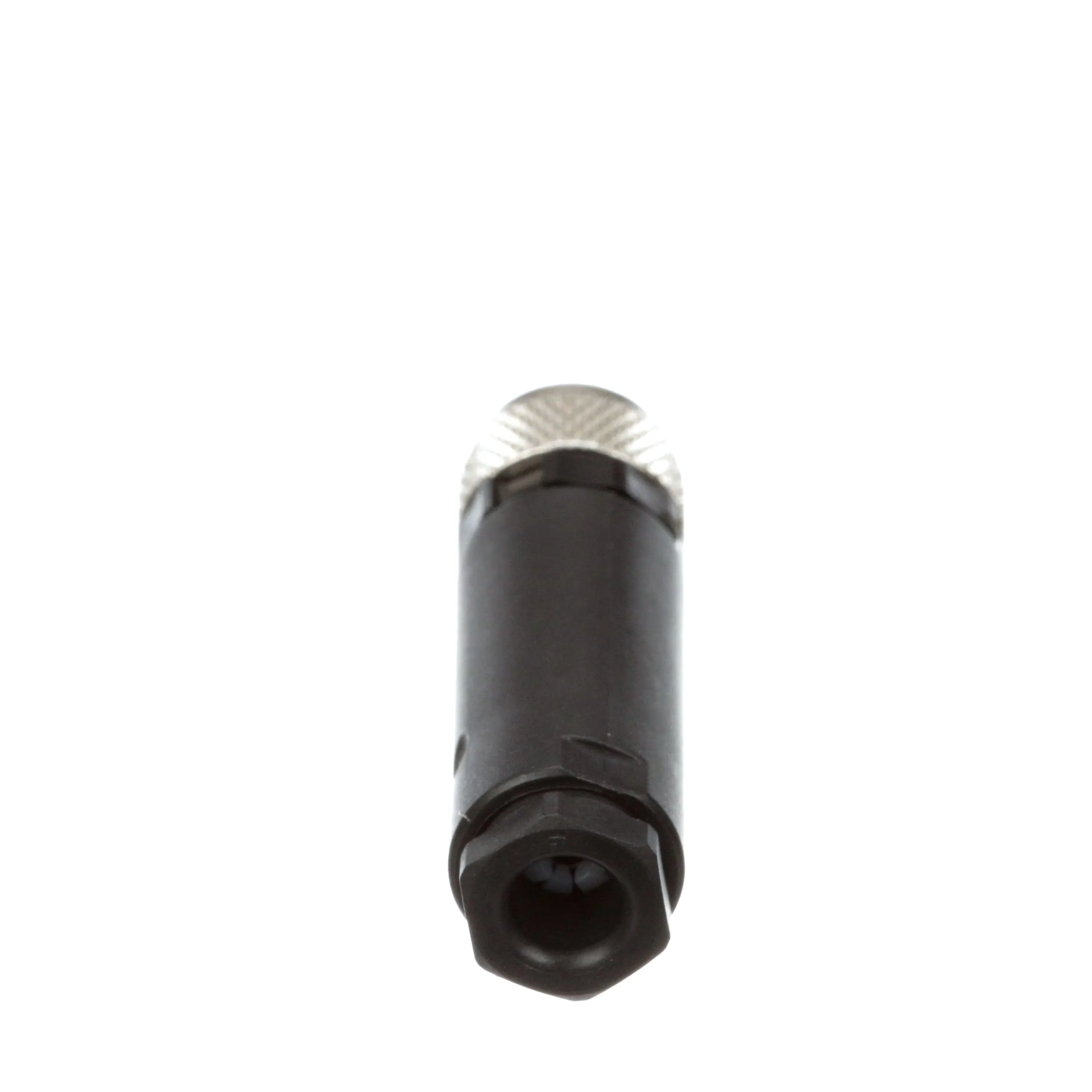

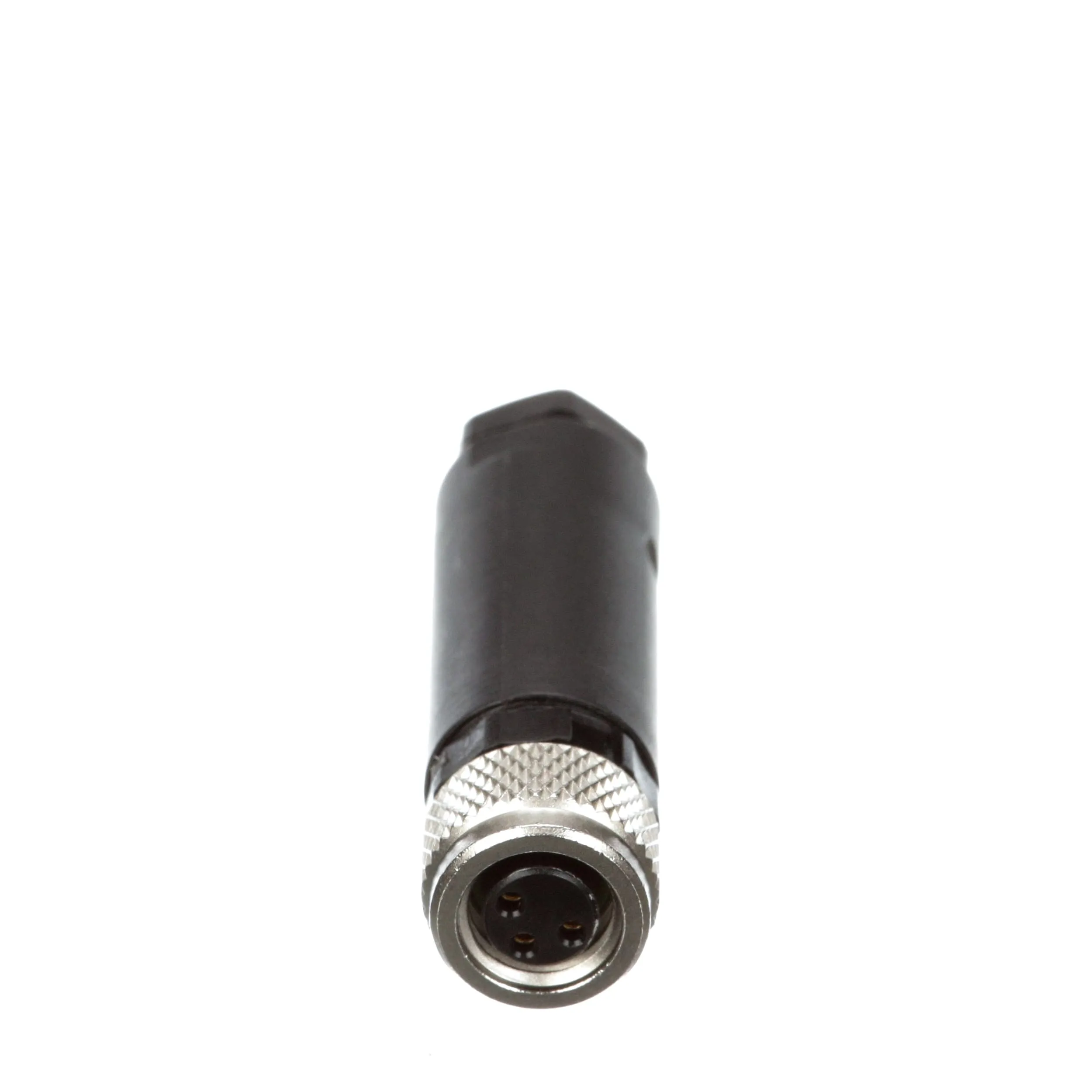

| Alternate Mfr Part Number | SACC-M 8FS-3CON-M-SW |
| Application | Sensor |
| Approvals | EAC, EAC, UL Listed, cUL Listed, cULus Listed |
| Cable end 1, Connector Type | M12 Plug |
| Coding | A-Code |
| Connection Type | Screw connection |
| Contact Material | CuZn |
| Current Rating | 4 A |
| Family Name | SPEEDCON Series |
| Gender | Female |
| Insulation Resistance | = 100 MO |
| IP Rating | IP67 |
| Jacket Material | PUR Halogen-Free |
| Mating Type | Full Thread |
| Number of Connectors | 3 Position |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Orientation | Straight |
| Primary Type | M Series Automation |
| Series | |
| Shell Size | M8 |
| Shielding | No |
| Standards | IEC 61076-2-104 |
| Termination | Screw |
| Torque | 0.1 Nm (Screw terminal blocks) |
| UPC Code | 4017918881214 |
| Wire Size | 26-20 AWG |
Overview
Phoenix Contact SAC and SACC Series – SPEEDCON Family of Sensor/Actuator Cabling and Industrial Connectors:
SPEEDCON is the next generation of M12 connectors, which have been an industrial standard for many years. With a simple “plug and 1⁄2 turn" SPEEDCON provides a time savings of 90% over the traditional M12 screw thread. The SPEEDCON coupling features a tactile stop to ensure proper alignment and guarantees a perfect connection in the field.
The SPEEDCON rapid interlock system is based on the principle of "Plug-and-Turn". It is 100-percent compatible with all M12 connectors. This means the cordsets are backwards compatible and can mate to fully threaded standard sensors. Reduce your assembly time by 90-percent. With just a half-turn, the SPEEDCON M12 rapid interlock system from Phoenix Contact creates a perfect connection. SPEEDCON from Phoenix Contact fulfills all electrical and mechanical properties of the classic M12 connector, as well as all common standards and requirements.
Features:
